Product Details
Place of Origin: China
Brand Name: YIDIAN
Model Number: VCB305 - 130*30*50MM
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: Contact us for a quote！
Packaging Details: Packed In Standard Carton Boxes
Delivery Time: 1 - 7 Working Days
Payment Terms: To be negotiated
Supply Ability: 10000pcs per month
Brand: |
YD |
Replacement Of: |
For Schmalz Vacuum Blocks |
Application: |
CNC Machine |
Art No.: |
10.01.12.00646 |
Size: |
VCEL-K2 130x30x50 Q |
Top Size: |
130*30MM |
Height: |
100MM |
Arrangement: |
Crossways |
Brand: |
YD |
Replacement Of: |
For Schmalz Vacuum Blocks |
Application: |
CNC Machine |
Art No.: |
10.01.12.00646 |
Size: |
VCEL-K2 130x30x50 Q |
Top Size: |
130*30MM |
Height: |
100MM |
Arrangement: |
Crossways |

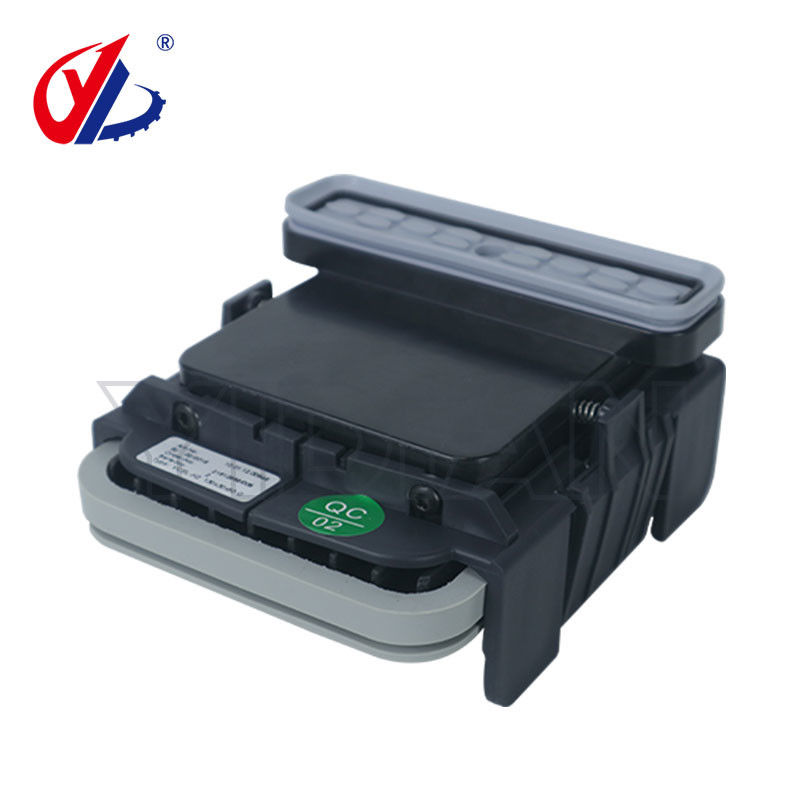

Schmalz 130*30*50 Q Replacement Vacuum Pods for CNC Machining Centers
Description :
| Specifications | |
| Product Name | Schmalz Vacuum Block |
| Brand | YIDIAN |
| Dimensions (LxW) | 130*30mm |
| Height | 50mm |
| Arrangement | Crossways |
| Art-No | 10.01.12.00646 |
| Type | VCEL-K2 130x30x50 Q |
| Application | HOMAG, BIESSE, FELDER |
VCEL-K2 130x30x50 Q Vacuum Block for 1-circuit Console for Woodworking CNC Machines
This suction pod is 50mm height VCBL-K1 130x30x50 Q single circuit consoles vacuum block, same use as part No. 10.01.12.00379, widely used with woodworking CNC machining centers with pod and rail table. This dimension of the vacuum pod is 130*30*50mm. It is used for clamping the narrow boards on the CNC table to machining.
The suction cups are also suitable for HOMAG, BIESSE, FORMAT4, FELDER, and IMA woodworking CNC machines.
The 10.01.12.00646 is a complete suction cup. The upper friction plate 10.01.12.00805, sealing frame 10.01.12.00804, and bottom suction plate 10.01.12.00228 can be replaced. Vacuum suction cup size of 130*30*50L is also avaliable. We suggest you keep some extra spare replaceable rubber pads in stock.
About Shipping: BY AIR / BY SEA / BY EXPRESS
We will choose the most economical express company to ship our products to our customers quickly and safely.
YIDIAN offers a wide range of CNC vacuum pods and replacement gaskets. Please provide the model No. Or size of the suction pods you need, and we will choose the correct products for you. Welcome to your inquiries!
