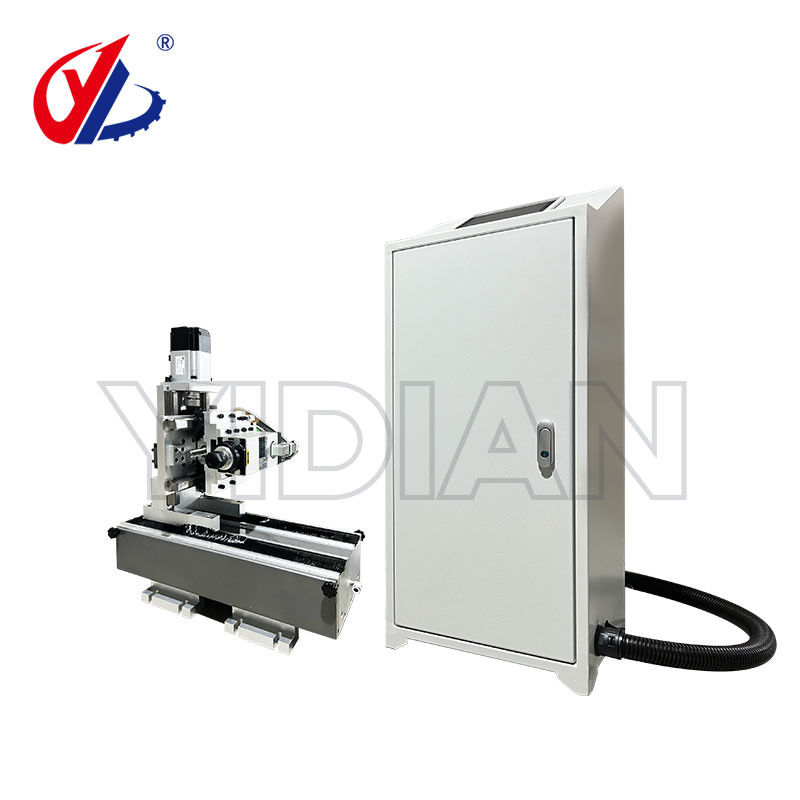

Maglev Side Drilling Device - Drilling Parts For Edgebanding Machine
Product Description:
Product Name: Maglev Side Drilling Device
Brand: YD
Parts - photoelectric switch, linear guides, vacuum hood, spindle motor, maglev module, servo motors, ball screw, oil separator, silent chains, base
Usage: Side Drilling Machines Used On Edgebander
Introducing the Maglev Side Drilling Device – Revolutionizing Edgebanding Machine Drilling!
Unleash the power of precision and efficiency with our cutting-edge Maglev Side Drilling Device, specifically designed to enhance the drilling capabilities of your Edgebanding Machine. This state-of-the-art accessory takes your woodworking experience to new heights, providing unparalleled accuracy and speed in edge drilling applications.
Advantages:
- Cost Reduction: Save labor costs.
- Deposit Reduction: Reduce 100m² factory building.
- Synergy: Simultaneous edgebanding and hole drilling, reducing one process and increasing efficiency by 30%.
- Quality Improvement: Continuous flow operation reduces deffects and misversions caused by handling and improves yield rate.
Technical Parameters:
| NAME |
PARAMETER |
| Servo Motors |
80EA-024A |
| Spindle Motors |
202KW-ER25-93*82 |
| Maglev Module |
XE4ZXK-16 |
| Linear Guides |
HGH25CA270ZAC |
| Ball Screw |
SFNU1605 |
| Photoelectric Switch |
W-ZJG13-F-5-Q18 |
Product Parameters:
| Z-axis |
Valid Intinerary |
150MM |
| Drive Motor Power |
750W |
| Positioning Accuracy |
0.02MM |
| Speed |
20M/min |
| Direction of Movement |
UP / DOWN |
| Y-axis |
Valid Intinerary |
260MM |
| Drive Motor Power |
3.5KW |
| Positioning Accuracy |
0.005MM |
| Speed |
180M/min |
| Direction of Movement |
LEFT / RIGHT |
| X-axis |
Direction of Movement |
FORWARD / BACKWARD |
| Drive Motor Power |
750W |
| Installation Hight |
350MM |
| Speed |
30M/min |
| Spindle Motor Power |
2.2KW |
| Valid Intinerary |
100MM |
| Spindle Motor Rotation Speed |
18000R/min |
| Positioning Accuracy |
0.02mm |
Applications:
- Maglev Technology: Our Side Drilling Device incorporates innovative Maglev technology, ensuring a frictionless and smooth drilling process. This not only improves precision but also significantly reduces wear and tear, resulting in a longer lifespan for your equipment.
- High-Speed Drilling: Experience a boost in productivity with our device's high-speed drilling capabilities. Whether you're working on large-scale projects or intricate designs, the Maglev Side Drilling Device ensures swift and efficient drilling without compromising accuracy.
- Versatility in Drilling Angles: Tailor your drilling requirements effortlessly with the device's adjustable drilling angles. Achieve the perfect drill position for various edgebanding needs, providing you with the flexibility to tackle a wide range of woodworking applications.
- User-Friendly Interface: Designed with the operator in mind, our Maglev Side Drilling Device boasts a user-friendly interface that simplifies the drilling process. Easily navigate through settings, making adjustments on the fly, and ensure a seamless workflow in your woodworking operations.
- Durable Construction: Built to withstand the demands of heavy-duty use, the device features a robust and durable construction. It is engineered to endure rigorous drilling tasks, ensuring consistent performance even in the most challenging woodworking environments.
Packing and Shipping:
Packaging and Shipping for YIDIAN woodworking spare parts
Packaging Details
- Each spare part and accessory will be individually wrapped and placed in a protective foam insert to ensure safe transportation.
- The foam insert will be placed in a sturdy cardboard box with appropriate cushioning materials to prevent any damage during shipping.
- The box will be labeled with the product name, quantity, and any necessary handling instructions according to clients' needs.
- For larger orders, products will be packaged in bulk and placed in a larger box for more secure transportation.
- All packaging materials used are recyclable and environmentally friendly.
Shipping
- International Shipping: We ship our products globally. Delivery times may vary depending on the destination country. Additional fees and customs charges may apply.
Please note that all shipping times are estimates and may vary due to unforeseen circumstances such as weather or carrier delays.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is YIDIAN.
- Q: What is the model number of this product?
A: The model number of this product is XEX4ZXK-500.
- Q: Where is this product made?
A: This product is made in China.
- Q: What is the application of the product ?
A: It's used as a drilling machine mounted on woodworking edgebanding machines.
Upgrade your Edgebanding Machine with the Maglev Side Drilling Device and elevate your woodworking capabilities. Whether you're a seasoned professional or a woodworking enthusiast, this innovative accessory is your key to precision, speed, and unparalleled efficiency in edgebanding machine drilling. Invest in the future of woodworking technology – invest in Maglev Side Drilling Device today!
