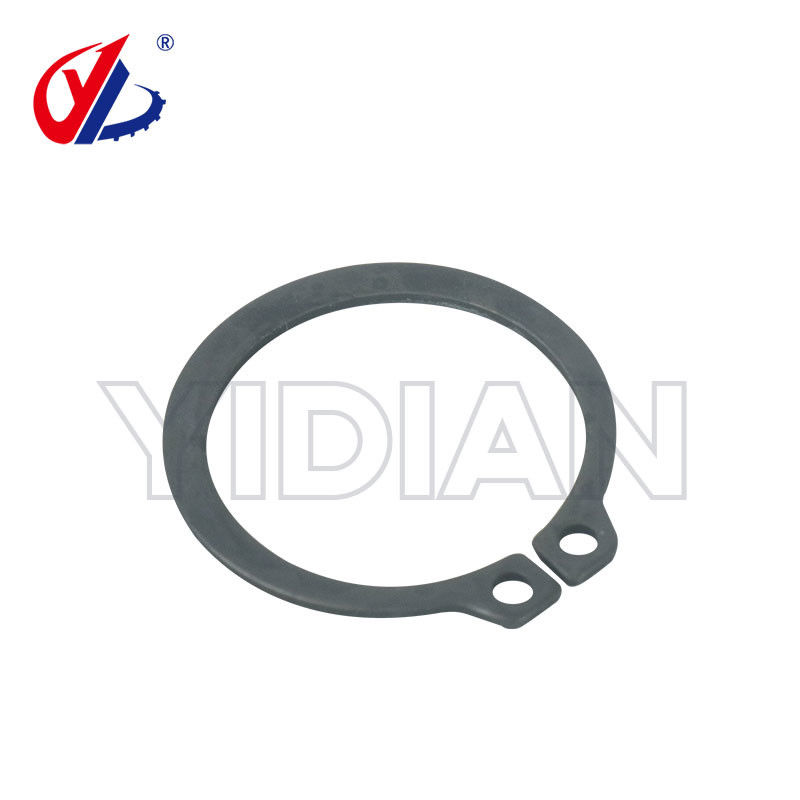

Product Description: Locking Ring DIN 471 25X1.2 C67 (Part No. 4004050012, 4-004-05-0012)

Introduction

The locking ring with part number 4004050012, also known as 4-004-05-0012, is a high-quality, precision-engineered component designed specifically for use in woodworking machinery, including those manufactured by Homag. This locking ring conforms to the DIN 471 standard, ensuring its compatibility and reliability in various industrial applications.

Specifications

- Standard: DIN 471

- Dimensions: 25 mm (inner diameter) x 1.2 mm (thickness)

- Material: C67 (high-carbon spring steel)

Material and Construction

The locking ring is made from C67, a high-carbon spring steel known for its excellent strength, durability, and resistance to wear. This material is particularly suitable for applications that require a robust and resilient component capable of withstanding high stress and repeated usage. The C67 steel undergoes a meticulous manufacturing process, including heat treatment, to enhance its mechanical properties, making it an ideal choice for high-performance industrial parts.

Function and Application

Locking rings, often referred to as circlips or retaining rings, are essential components in mechanical assemblies. They are used to secure parts onto a shaft or within a bore, preventing axial movement and ensuring the stability and proper functioning of the machinery. The DIN 471 standard specifies the dimensions and tolerances for these rings, ensuring a precise fit and reliable performance.

In woodworking machinery, such as those produced by Homag, the locking ring 4004050012 is crucial for maintaining the alignment and operation of various moving parts. It plays a vital role in the assembly and maintenance of components, ensuring that they remain securely in place during operation. This helps to minimize downtime, reduce maintenance costs, and extend the lifespan of the machinery.

Installation and Maintenance

Installing the DIN 471 locking ring requires appropriate tools to ensure correct placement without damaging the ring or the shaft. Proper installation involves compressing the ring and positioning it into the groove on the shaft, where it will expand and lock into place, providing a secure fit. Regular inspection and maintenance are recommended to ensure the ring remains in good condition and continues to perform effectively.

Compatibility

This locking ring is specifically designed for use in Homag woodworking machines but is also compatible with a wide range of other industrial applications that adhere to DIN 471 standards. Its versatility and reliability make it a valuable component in various sectors, including automotive, manufacturing, and machinery maintenance.

Conclusion

The locking ring DIN 471 25x1.2 C67, part number 4004050012 or 4-004-05-0012, is a critical component in the realm of woodworking machinery spare parts. Its robust construction, adherence to industry standards, and vital role in ensuring the stability and functionality of mechanical assemblies make it an indispensable part for Homag machines and other compatible equipment. Investing in high-quality components like this locking ring ensures optimal performance, longevity, and efficiency of your machinery, ultimately contributing to the success and productivity of your operations.
