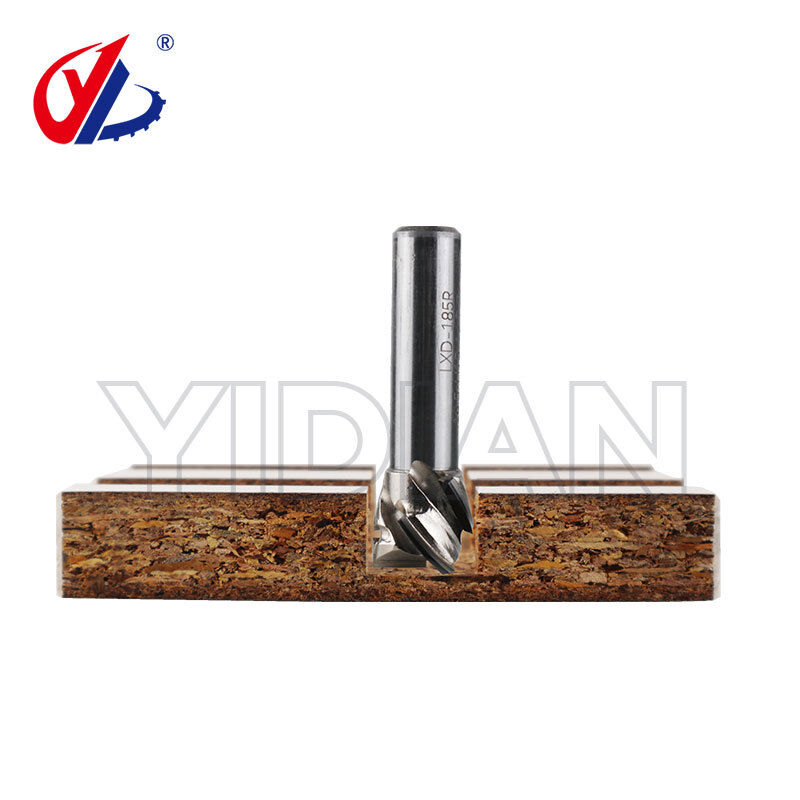

PCD Compression Spiral Cutter 18.5x112.7xH15 Z2+2 CNC Cutting Tool

PCD Z2+2 Compression Spiral Cutter for CNC Nesting

Product Overview

The PCD Z2+2 Compression Spiral Cutter is designed for high-performance CNC machining and nesting applications in the woodworking and furniture industry. Featuring PCD (Polycrystalline Diamond) cutting edges and a Z2+2 compression geometry, this cutter provides excellent cutting performance, long service life, and clean cutting edges on both the top and bottom surfaces of the workpiece.

It is especially suitable for processing MDF, particleboard, melamine-faced panels, laminated panels, HPL, plywood, and other engineered wood materials.

With its compression cutting geometry, the cutter helps reduce chipping and tearing on both sides of the panel, making it an ideal choice for high-speed CNC nesting and panel processing.

Key Features

• PCD cutting edges for excellent wear resistance and extended tool life

• Z2+2 compression geometry for clean cutting on both the upper and lower surfaces

• Excellent performance when machining abrasive engineered wood panels

• Suitable for high-speed CNC routing and nesting applications

• Helps reduce edge chipping and delamination

• Excellent dimensional stability during long-term machining

• Ideal for continuous production and high-volume furniture manufacturing

• Available for different CNC machines and application requirements

Technical Specifications

Z2+2 Compression Cutting Design

The Z2+2 cutting geometry combines up-cut and down-cut cutting action to improve the quality of the machined edge.

This compression design helps control chip evacuation and minimizes chipping on both the top and bottom surfaces of the panel. It is particularly beneficial when machining decorative panels where a clean finished edge is important.

Recommended Applications

This PCD spiral cutter is suitable for:

• CNC nesting machines

• CNC routers

• Furniture panel processing

• Cabinet manufacturing

• Panel cutting and sizing

• Contour cutting

• Grooving and profiling

• High-speed woodworking applications

Recommended Materials

• MDF

• HDF

• Particleboard

• Melamine-faced particleboard

• Laminated panels

• HPL panels

• Plywood

• Other engineered wood-based panels

Why Choose PCD?

Compared with conventional carbide cutters, PCD cutters offer significantly higher wear resistance when machining abrasive materials such as MDF, particleboard, and melamine panels.

The combination of PCD cutting edges and Z2+2 compression geometry makes this cutter particularly suitable for demanding CNC nesting applications where long tool life, high productivity, and consistent edge quality are required.

Suitable for High-Volume Production

For furniture manufacturers and CNC machining centers running continuous production, tool life and machining stability are critical.

The PCD Z2+2 Compression Spiral Cutter is designed to provide:

Longer Tool Life → Fewer Tool Changes → Higher Productivity → Consistent Cutting Quality

Custom Options

YIDIAN can supply PCD CNC cutters in different specifications according to machine configuration and machining requirements.

Custom options may include:

• Different cutter diameters

• Different cutting lengths

• Different overall lengths

• Different shank specifications

• Customized tooth geometry

• Customized PCD grades and configurations

Please provide your machine model, existing cutter dimensions, drawing, or part number when requesting a quotation. Our technical team can help confirm the appropriate cutter specification.
