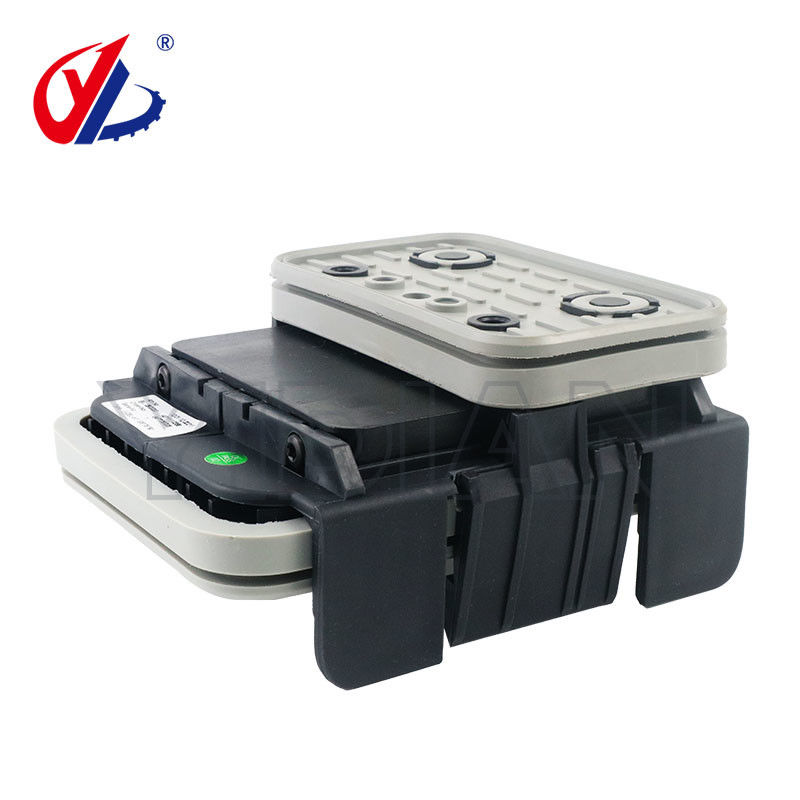

125x75x50mm Gray Vacuumpods CNC Vacuum Pods For Cnc Router
125x75x50mm Gray Vacuumpods
,Vacuumpods CNC Machine
,CNC Vacuum Pods For Cnc Router
125x75x50mm CNC Vacuum Blocks for CNC Processing Woodworking Machine
Description :
Model Number: VCB303
Top Size: 125*75mm
Height: 50mm
Other name: CNC Vacuum Cup, Vacuum Block
Application: It is widely used in the wood industry for vacuum clamping during machining, sanding etc. Vacuum suction cup VCBL-K1 125X 75mm H= 50mm 1-circle is the standard equipment in CNC Homag, Weeke, IMA, Masterwood, Felder, Holz-Her, Reichenbacher.
Brand: YIDIAN
Origin: China
Lead time: 1~7 working days
Materials: Plastic and Rubber
| Parameters | |
| Art Number | 10.01.12.00211 |
| Type | VCBL-K1 125*75*50 |
| Product Name | Suction Cup |
| Top dimensions (LxW) | 125*75mm |
| Height | 50mm |
| Top direction | Crossways |
VCBL-K1 125x75x50 Q Crossways Vacuum Suction Cups 10.01.12.00211 for CNC
The vacuum pod is a height of 50mm 1-circuit consoles vacuum suction cup, Schmalz article No. 10.01.12.00211. VCBL-K1 125x75x50 Q is the crossways vacuum block for narrow parts clamping, used with Weeke/Homag and other PTP CNC machine centre with pod and rail table.
The 10.01.12.00211 vacuum cup comes with a complete entire set.
Also, the top rubber pads 4-011-11-0079, 10.01.12.00011 and bottom vacuum pads 10.01.12.00228 are available as replacements.
A range of replacement cups and rubber pads for Homag, Weeke, Biesse, SCM and other brands woodworking machines for sale here.
YIDIAN is a reliable source for CNC & Woodworking machine spare parts. Contact us now!
